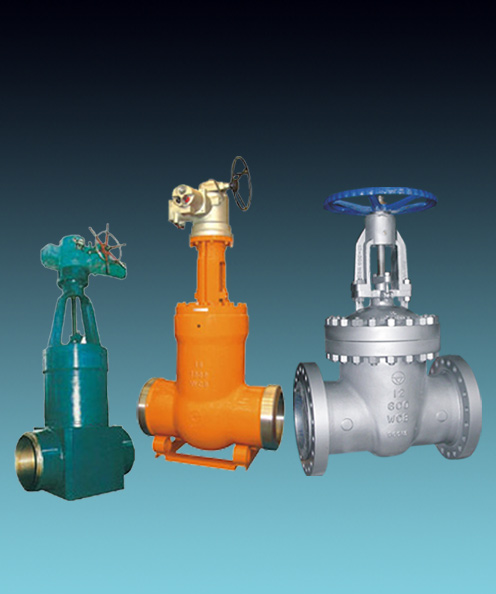

Steel gate valve
Design and Manufacture: Cast steel gate valve to API 600 (ISO 10434) or API 6D; Cast stainless steel gate valve to API 603 or API 600; Forged steel gate valve to API 602. Inspection and Test: API 598, API 600 or API 6D. End flange dimension: ASME B 16.5 ( for NPS?24); ASME B 16.47 series B?API605 or ASME B 16.47 series A?MSS SP-44(for NPS>24). BW end dimension: ASME B 16.25. Socket-weld dimension: ASME B 16.11. Face to face and end to end:ASME B 16.10. Pressure-temperature ratings:ASME B 16.34.

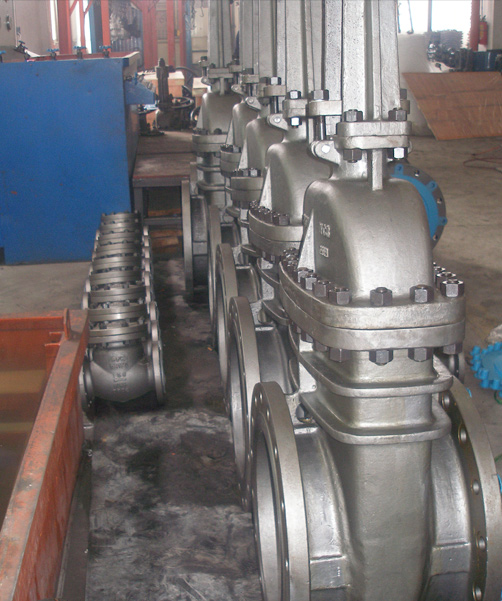

API603 cast stainless steel gate valve
Design and Manufacture: Cast steel gate valve to API 600 (ISO 10434) or API 6D; Cast stainless steel gate valve to API 603 or API 600; Forged steel gate valve to API 602. Inspection and Test: API 598, API 600 or API 6D. End flange dimension: ASME B 16.5 ( for NPS?24); ASME B 16.47 series B?API605 or ASME B 16.47 series A?MSS SP-44(for NPS>24). BW end dimension: ASME B 16.25. Socket-weld dimension: ASME B 16.11. Face to face and end to end:ASME B 16.10. Pressure-temperature ratings:ASME B 16.34.
