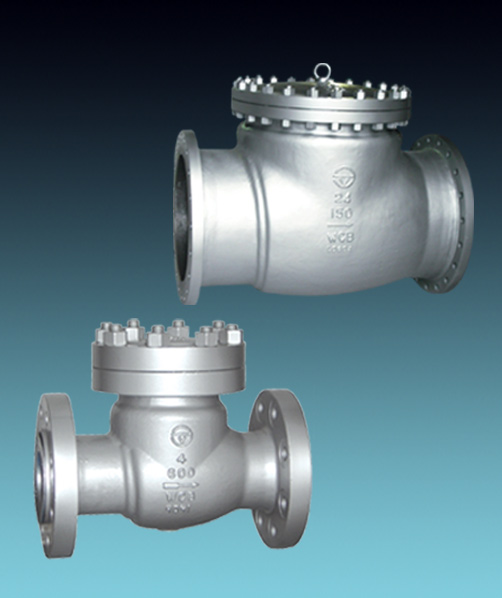

Cast steel swing check valve
Design and Manufacture: Casst steel check valve to BS 1868?ASME B 16.34 and API 6D; Forged steel check valve to API 602. Inspection and Test: API 598 or API 6D. End flange dimension: ASME B 16.5 (for NPS?24); ASME B 16.47 series B?API 605 or ASME B16.47 Series A?MSS SP-44(for NOS>24). BW end dimension: ASME B 16.25. Socket-weld dimension: ASME B16.11. Face to face and end to end: ASME B16.34. Pressure-temperature ratings: ASME B16.34. Wall thickness dimension: API 600 and BS 1868.

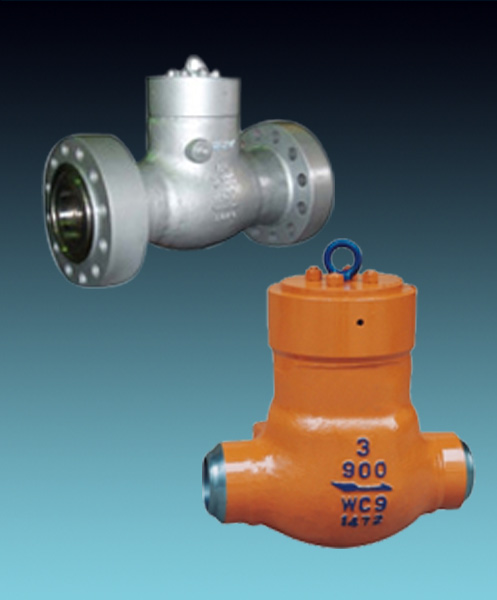

Cast steel swing check valve
Design and Manufacture: Casst steel check valve to BS 1868?ASME B 16.34 and API 6D; Forged steel check valve to API 602. Inspection and Test: API 598 or API 6D. End flange dimension: ASME B 16.5 (for NPS?24); ASME B 16.47 series B?API 605 or ASME B16.47 Series A?MSS SP-44(for NOS>24). BW end dimension: ASME B 16.25. Socket-weld dimension: ASME B16.11. Face to face and end to end: ASME B16.34. Pressure-temperature ratings: ASME B16.34. Wall thickness dimension: API 600 and BS 1868.

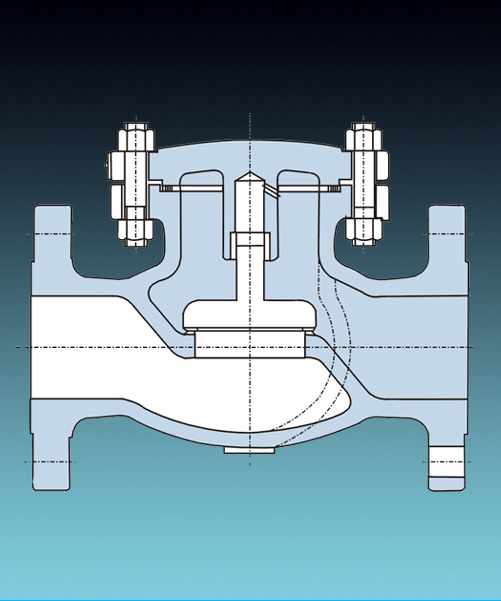

Cast steel lift check valve
Design and Manufacture: Casst steel check valve to BS 1868?ASME B 16.34 and API 6D; Forged steel check valve to API 602. Inspection and Test: API 598. End flange dimension: ASME B 16.5 (for NPS?24); ASME B 16.47 series B?API 605 or ASME B16.47 Series A?MSS SP-44(for NOS>24). BW end dimension: ASME B 16.25. Socket-weld dimension: ASME B16.11. Face to face and end to end: ASME B16.34. Pressure-temperature ratings: ASME B16.34. Wall thickness dimension: API 600 and BS 1868.

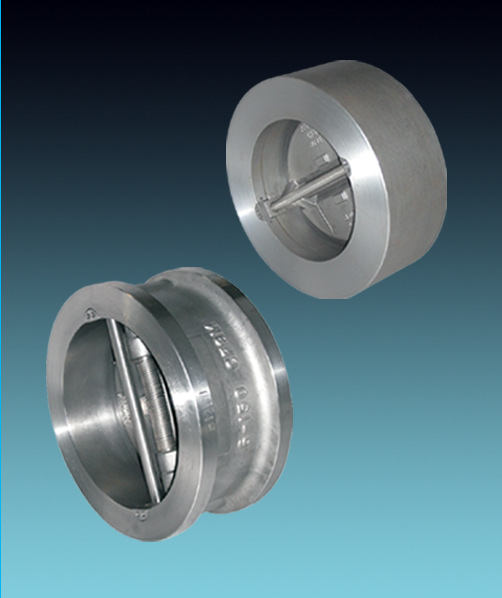

Butterfly swing check valve
Design and Manufacture:ANSI B 16.34.API 6D Face to face:API 6D Flanded connection:2”-24” To ANSI B16.5 22”, 26-36” To MSS-SP-44 To API 605 on request Test and inspection: API 6D Shell test:150Lb 450 PSI300Lb 1125 PSI Seat test:150Lb 315 PSI (Hydrostatic)80PSI (Air)300Lb 815 PSI
